SKU

21A2558

Rear Subframe Front Mounting Trunnion

Name: Rear Subframe Front Mounting Trunnion
SKU: 21A2558
Price: 36.864001 USD
Availability: InStock

Special Price $36.86 $30.72 Regular Price $41.12

In stock

SKU

21A2558

Mini rear subframe front mounting trunnion

Frequently Bought Together

Rear Subframe Front Mounting Trunnion
Special Price $37.14 $30.95 Regular Price $41.42
Tower Bolt Round Rubber Bush each
Special Price $7.32 $6.10 Regular Price $8.27
Radius Arm Spindle & Bush Recon Kit - per arm as pictured
Special Price $22.90 $19.08 Regular Price $24.17
Rear Subframe Mounting Trunnion - Stepped type
Special Price $34.20 $28.50 Regular Price $38.14
Rear Subframe Trunnion pin each
Special Price $19.03 $15.86 Regular Price $21.37

Details

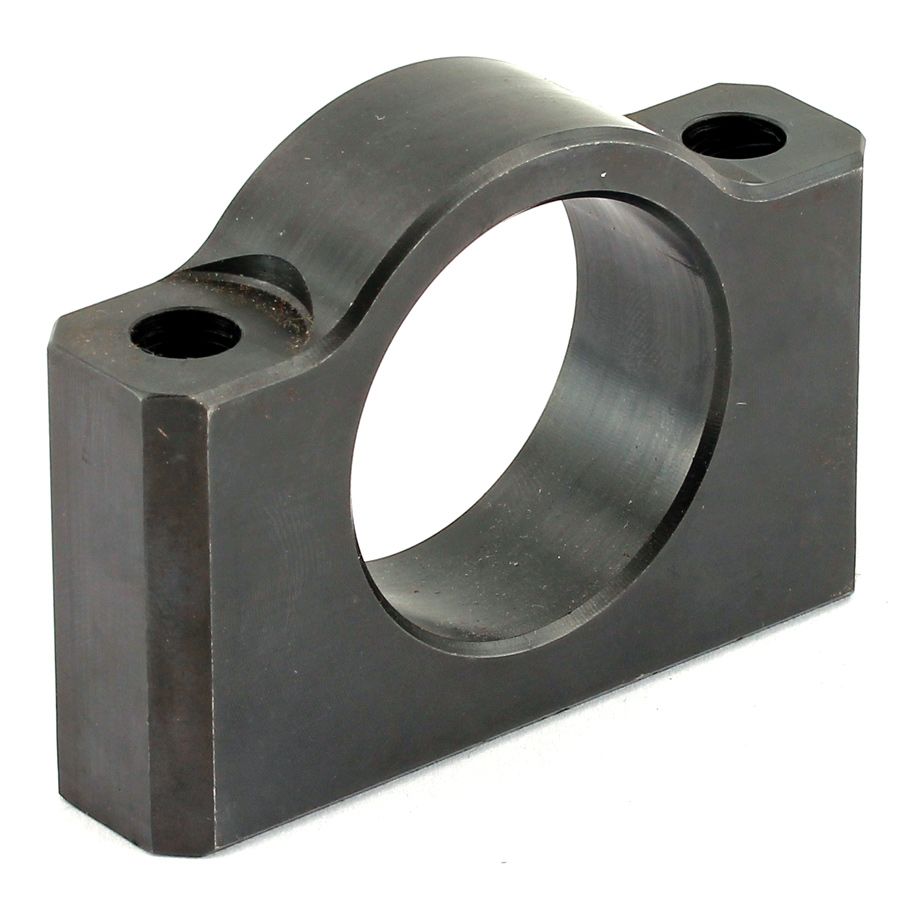

Mini rear subframe mounting trunnion to mount the front side of the subframe to the heel board under the rear seat.

Made from a steel billet by Mini Sport, this is much stronger than the original cast part it replaces.

This is the later type rectangular trunnion fitted Mini models 1976 onwards.

The large rubber bush that fits into this is 21A2560.

Buy top quality standard and uprated Mini suspension parts from Mini Sport, the world's premier online Mini store!

No.

Description

Notes

Part No.

1	All (Hydrolastic) wet suspension models		21A2160
1	'59-'91 dry suspension models - no exhaust hangers		FAM6292
1	'92-'97 models with exhaust hangers		KHB10023
1	Sportspack '97-'01		KHB100590
1	Automatic Subframe assembly - '92-'97		KHB10024
1	KHB10024 including trunnions & bushes (as pic)		KHB10026
	Genuine - Mk4 built up and ready to fit		HMP241002
1	'59-'91 dry suspension models - no exhaust hangers		40-10-007
1	'59-'91 models - no exhaust hangers powder coated		40-10-007PC
1	'91-'97 dry suspension models - with exhaust hangers		40-10-008
1	'91-'97 models - exhaust hangers powder coated		40-10-008PC
1	All (Hydrolastic) wet suspension models)		40-10-006
2	RH radius arm/subframe bracket, each		21A195
3	LH radius arm/subframe bracket, each		21A197
7	Rear subframe fitting kit (as pic)		HMP841014
8	Rear trunnion pin, each		21A1440
9	Rear mounting bush, late, each		21A2560
9	Poly bush kit - late (red or black)		SPDSP664A
9	Nylon bush kit - late		MSLMS0531
10	Rear mounting bush - early, each		2A5818
10	Poly bush kit - early (red or black)		SPDSP662A
10	Nylon bush kit - early		MSLMS0532
11	Spring washer	each	GFK1125
12	Long trunnion bolt	each	SH605181
12	Short trunnion bolt	each	GFK5185
13	Nyloc nut	each	GFK3323
14	Washer	each	PWZ207
15	Washer - 5/16"	each	GFK1114
16	Nut - 5/16" UNF	each	GFK3322
17	Set Screw - trunnion 5/16" UNF	each	BH605201
18	Trunnion (rectangle), each		21A2558
19	Trunnion (step), each		2A5819

More Information
SKU	21A2558
Manufacturer	Mini Sport
Cross Reference Product Codes	21A2558MS
