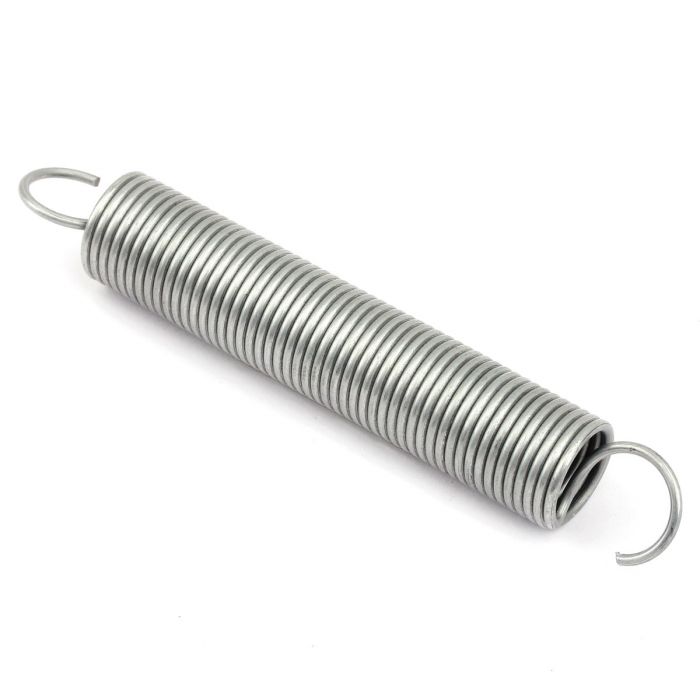

SU Carb Throttle Return Spring - for Single & Twin Carbs

Name: SU Carb Throttle Return Spring - for Single & Twin Carbs
SKU: 21A839
Price: 4.356001 USD
Availability: InStock

Special Price $4.36 $3.63 Regular Price $5.32

In stock

SKU

21A839

Su carb throttle return spring - for single & twin carbs

Frequently Bought Together

SU Carb Throttle Return Spring - for Single & Twin Carbs
Special Price $4.36 $3.63 Regular Price $5.32
SU Throttle Return Spring - for Twin SU Carbs
Special Price $1.36 $1.13 Regular Price $1.63
Carb Gasket - Carb to Inlet Manifold 1.5'' HS4
Special Price $2.09 $1.74 Regular Price $2.94
Cork Rocker Cover Gasket
Special Price $2.89 $2.41 Regular Price $3.43
Throttle Cable - HS2/HS4
Special Price $6.80 $5.67 Regular Price $8.16

Details

SU Carb Throttle Return Spring - for Single & Twin Carbs

No.

Description

Notes

Part No.

1	Carb Gasket - Carb to Inlet Manifold 1.5'' HS4	AUD2219X
2	HS4 Alloy Spacer Block	12H1389
5	Carb Gasket - HIF44	GUG705561GM
6	Nut - carburettor to manifold	GHF201
7	Plain Washer	GFK1114
11	Breather Pipe - oil breather to carburettor	12A1735
12	Clip - connection to carburettor	JUB000
13	Clip - connection to oil separator	JUB00
14	Bracket - throttle abutment HS4	12G766
14	Bracket - throttle control HIF44	CAM4942
22	Screw - lever adjusting	WZX1269
23	Clip - screw locking	AUD4771
25	Rod - throttle control Automatic '85-'94	DAM8393
26	Joint - ball	12G2006
27	Nut - ball joint to rod or crank	GHF206
28	Spring Washer	LWZ303
29	Spring - throttle return - manual single carb	21A839
	Spring - throttle return - twin carb	AEC2075
30	Tag - anchor	12A1282
31	Pin - throttle lever	12A1283
33	Hose - vent pipe to carburettor	37H6844M
34	Clip - vent pipe	PCR411
35	Pipe - vent	MAP10055
	Solderless Nipple - throttle & choke cable	AUE34

No.

Description

Notes

Part No.

1	Pedal - accelerator - RHD	SPi	SAB10039
1	Pedal - accelerator - RHD		NAM3108
1	Pedal - accelerator - LHD		NAM3107
1	Pedal - accelerator - RHD	MPi - '97on	SAB101220MUN
1	Pedal - accelerator - LHD	MPi - '97on	SAB101210MUN
	Throttle Stop Bracket - RHD	MPi - '97on	SAB101210
2	Locknut - RHD		NV604041
	Screw - LHD		SH604041
	Washer - spring - LHD		GFK1124
3	Spring - throttle return		21A839
	Spring - throttle pedal arm	MPi - '97on	SAH10004
	Mk1/2 ST type - Throttle Cable		AHT85
4	Throttle Cable - HS Carbs	'74-'89	LANMS0359
	1275cc Throttle Cable - HIF Carbs	'90 on RHD	SBB10099
	HIF38 Throttle Cable	Ô90 on LHD	SBB10126
4	SPI Throttle Cable	Ô92-Õ95 LHD	SBB10186
4	SPI Throttle Cable	Ô95-Õ96 LHD	SBB102500
	SPi Throttle Cable	'92-'95	SBB10187
4	SPi Throttle Cable	'95-'96	SBB102510
4	MPi Throttle Cable	'97-'01	SBB103400
	MPI Throttle Cable	Ô97-Õ01 LHD	SBB103720
5	Mk1 locking		21A1204
5	Mk3 to '87		21A2329
5	Mk3 '87-'90		SBF10027
5	Mk3 '90 on		SBF10031
6	Clip cable to switch carrier - for SBF10027		ADU5065
	Screw-cable trunnion		NAM7138
	Washer		NAM7139
	Nut		NH106041
	Clip-cable		JYC10009
	Bracket - cable	RHD SPi	SBU10022
	Switch - throttle	SPi	NNS10001
7	Strap - accelerator cable tie		GHF1266
7	Tie - cable		AAU6365
8	Clip - cable retaining		11H1172
8	Clip - cable retaining		NAM6923
8	Clip - cable retaining		DCP7342
9	Pin - lever - cable to carburettor		ACC5062
10	Nut		GFK3211
11	Washer - plain		GFK1113
12	Washer - anti rattle		ACA5256
13	Washer - plain		PWZ203
14	Pin - choke cable to carburettor		AUE34
15	Screw - pin		53K3503
16	Clip - retaining - choke to abutment		13H3472
17	Grommet cable		CAM5969

More Information
SKU	21A839
Manufacturer	OE Spec
