SKU

2A4362

Lower Arm Pin

Name: Lower Arm Pin
SKU: 2A4362
Price: 19.944001 USD
Availability: InStock

Be the first to review this product

Special Price $19.94 $16.62 Regular Price $24.24

In stock

SKU

2A4362

Bottom arm pin for the Mini front lower suspension arm.

Frequently Bought Together

Lower Arm Pin
Special Price $19.94 $16.62 Regular Price $24.24
7/16 UNF Nyloc nut each
Special Price $0.44 $0.37 Regular Price $0.49
Negative Camber Lower Arms 1.5°
Special Price $68.40 $57.00 Regular Price $80.46
Poly Lower Arm Bush Kit - Red Set of 4
Special Price $10.08 $8.40 Regular Price $12.24
Front Rebound Buffer each
Special Price $7.72 $6.43 Regular Price $9.04

Details

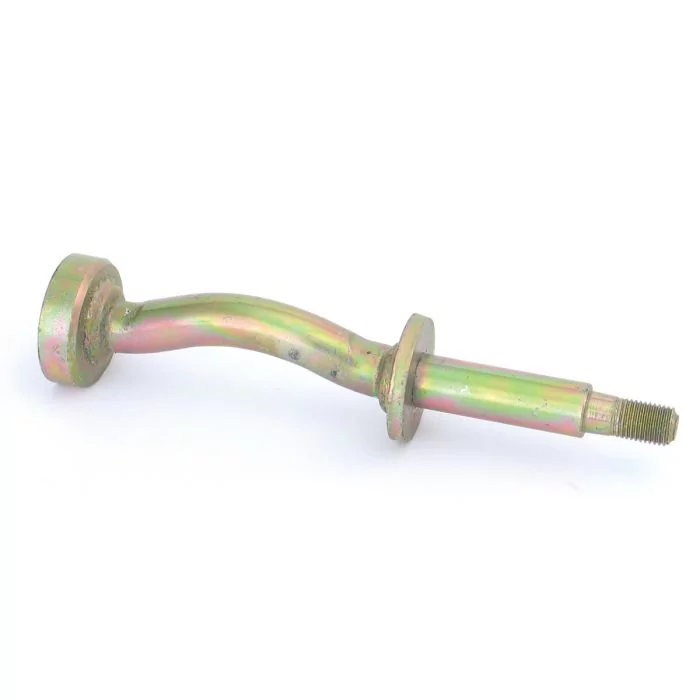

2A4362 - Original equipment specification Mini lower arm pin.

This pin fits into the front subframe to mount the bottom arm. It gets is strange shape from the need to give the drive shaft room to move.

When renewing this part dont forget to change the bushes on the arm. We have these available in standard rubber - 21A1882 - polyurethane - SPDSP657 - and solid nylon - MSLMS0528.

The nut at the end is 3/8/UNF - GFK3323.

Buy top quality Classic Mini suspension spares and parts from Mini Sport, the worlds' premier online Mini store!

Find all related parts with our Easy Parts Finder

No.	Description	Notes	Part No.
1	Standard rubber cone - front & rear		FAM3968
1	Competition rubber cone - front & rear		FAM3968C
1	Moulton Smootha Ride front cone		MSLA318490018
1	Moulton Smootha Ride rear cone		MSLA318490019
2	Aluminium front strut, each		21A530
2	Adjusta Ride front struts, pair		MSLMS0500
	Adjusta Ride full car kit		SUSKIT5
3	Knuckle joint - standard, each		21A1163
3	Knuckle joint - Adjusta Ride, each		MSLMS0502
4	Knuckle joint nylon cup, each		21A423
5	Genuine tie rod (inc bushes),	each	8G4249
5	Adjustable tie rods - thick, pair		C-8G4249
5	Group 'A' Adjustable tie rods, pair suitable for road, rally or race		MSLMS0512
5	Group 'A' rose jointed tie rods, pair suitable for tarmac rally or race		MSLMS0518
	Female Rose Joint 1/2" UNF, each		MSLRJF
	Teflon 1/2"UNF female rose joint		MSLRJFTEF
	Male Rose Joint 1/2" UNF, each		MSLRJM
	Teflon 1/2"UNF male rose joint		MSLRJMTEF
6	Bolt - tie rod to bottom arm,	each	53K1031
7	Spring Washer - 5/16" UNF Spring washer,	each	GFK1125
8	Nut - Nyloc 5/16'UNF	each	GFK3322
9	Standard rubber bushes	each	31G1155
9	Uprated rubber bushes	set 4	C-STR628
9	Poly bush kit (black or red)	set 4	SPDSP655
10	Washer - cup type, tie rod end	each	2A4328
11	Washer - flat, tie rod end	each	PWZ207
12	Nyloc nut - 7/16"UNF tie rod	each	GFK3324
13	Shock Absorbers	each or kits	Shop All
13a	Rubber eyelet bush (with insert),	each	SPABB10
14	Top standard mount, LH,	each	21A474
14	Top standard mount, RH,	each	21A471
14	Top competition mount, RH,	each	C-AJJ3360
14	Top competition mount, LH,	each	C-AJJ3359
15	Set Screw - 1/4" UNF x 3/4"	each	GFK5179
16	Spring Washer - 1/4"	each	GFK1113
17	Front Shock Absorber Bottom Mount,	each	2A4337
17	Lower competition pin	each	C-AJJ3361
18	Nut - Nyloc 3/8"UNF shocker mount	each	GFK3323
19	Bump Stop - rubber twin bolt	each	2A4332
19	Bump Stop - rubber single bolt	each	FAM2764
19	Bump Stop - rubber hydrolastic type	each	21A1598
19	Bump Stop - rubber single bolt - early MK1	each	ACA9671
19	Bump Stop - poly single bolt	pair	SPDSP450E
19	Bump Stop - poly twin bolt	pair	SPDSP451
20	Nut - 1/4" UNF		GFK3211
20	Nut - nyloc 1/4"UNF		GFK3321
21	Spring Washer - 1/4"		GFK1124
21	Washer - flat 1/4Ó		GFK1113
22	Repair kit, all parts to service 1 x top arm		VPS6
23	Top arm shaft	each	2A4325
24	Sealing Ring bush - top arm shaft	each	2A7327
25	Thrust washer - top arm shaft	each	2A7324
26	Thrust collar - top arm shaft	each	2A4326
27	Retaining plate - top arm shaft	each	2A4327
28	Spring washer - top arm shaft	each	MSLMS0046
29	Nut - top arm shaft	each	MSLMS0045
30	Rebound buffer, each		2A4267
30	Poly rebound buffer, pair		SPDSP681FR
31	Shaft - lower suspension arm	each	2A4362
32	Bush - rubber (2 per arm)	each	21A1882
32	Bush kit - polyurethane uprated (black or red)	kit	SPDSP657
32	Bush set - nylon competition type	set	MSLMS0528
33	Nut - nyloc 3/8"UNF	each	GFK3323
35	Top Arm RH - suit dry suspension		21A2690

More Information

More Information
SKU	2A4362
Manufacturer	Mini Sport
Cross Reference Product Codes	2A4362
