SKU

AAU8424

1st Motion Roller Support Bearing

Name: 1st Motion Roller Support Bearing
SKU: AAU8424
Price: 16.668001 USD
Availability: InStock

Be the first to review this product

Special Price $16.67 $13.89 Regular Price $23.82

In stock

SKU

AAU8424

1st motion roller support bearing

Frequently Bought Together

1st Motion Roller Support Bearing
Special Price $16.79 $13.99 Regular Price $23.99
Circlip - 1st Motion Roller Support Bearing
$5.71 $4.76
Gearbox Bearing Kit - A+
$180.73 $150.61
OE Spec Clutch Oil Seal
$5.71 $4.76
Gearbox Gasket set
Special Price $14.77 $12.31 Regular Price $18.58

Details

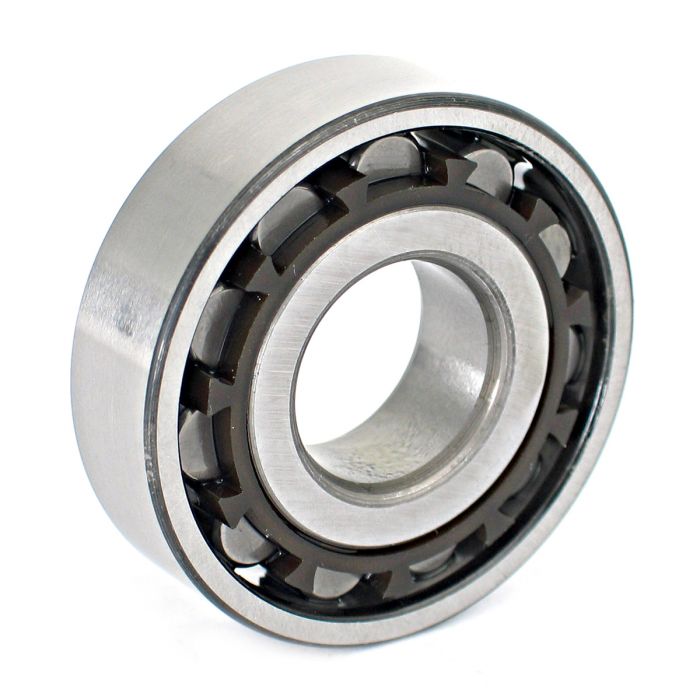

Replacement 1st Motion Roller Support Bearing. This bearing fits on the end of the 1st motion shaft and sits in the flywheel housing. Suitable for all A series and A+ gearboxes except the Metro turbo.

If you are changing this bearing you should also fit new circlips,

CCN110 - circlip for !st motion shaft
2A3643 - circlip for flywheel housing

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Primary gear	- 850cc/ 1000cc/ 1100cc A series	22A1493
1	Primary gear	- 1275cc A series	22G1053
1	Primary gear	- 1000cc/ 1100cc A+	DAM8888
1	Primary gear	- 1275 A+ including injection models	DAM8890
3	Rear bush with lip - Primary Gear	all models	22G109
2	Front bush	- Primary Gear - 1275cc	DAM8889
4	Thrust washer	- 2.84-2.89mm(0.112-0.114") - 998cc	22A322
4	Thrust washer	- 2.89-2.94mm(0.114-0.116") - 998cc	22A323
4	Thrust washer	- 2.94-2.99mm(0.116-0.118") - 998cc	22A324
4	Thrust washer	- 2.99-3.04mm(0.118-0.120") - 998cc	22A450
4	Thrust washer	- 3.04-3.09mm(0.120-0.122") - 998cc	DAM4599
4	Thrust washer	- 2.84-2.89mm(0.112-0.114") - 1275cc	DAM6490
4	Thrust washer	- 2.89-2.94mm(0.114-0.116") - 1275cc	DAM6486
4	Thrust washer	- 2.94-2.99mm(0.116-0.118") - 1275cc	DAM6487
4	Thrust washer	- 2.99-3.04mm(0.118-0.120") - 1275cc	DAM6488
4	Thrust washer	- 3.04-3.09mm(0.120-0.122") - 1275cc	DAM6489
6	'C' Washer backing plate	Primary Gear	88G549
5	'C' Washer	Primary Gear	22A319
8	Idler gear	- 998cc/ 1100cc/ 1300cc A+ (37)	DAM2924
9	Thrust washer	- A+ idler gear (.130" - .131")	DAM5914
9	Thrust washer	- A+ idler gear (.132" - .133")	DAM4822
9	Thrust washer	- A+ idler gear (.134" - .135")	DAM4823
9	Thrust washer	- A+ idler gear (.136" - .137")	DAM4824
9	Thrust washer	- A+ idler gear (.138" - .139")	DAM4825
10	Nut	1st Motion Drive Gear	2A3548
11	Locktab	Holds Input Gear to 1st Motion Shaft	DAM4000
12	1st Motion Drive Gear	4 syncro A Series	22G849
12	1st Motion Drive Gear	4 syncro A+	DAM2925
13	Roller Bearing	1st Motion Shaft Support	AAU8424
14	Large Circlip	1st Motion Support Bearing	2A3643
15	Small Circlip	1st Motion Support Bearing	CCN110

More Information

More Information
SKU	AAU8424
Manufacturer	OE Spec
Cross Reference Product Codes	AAU8424
