SKU

AUTHCP316

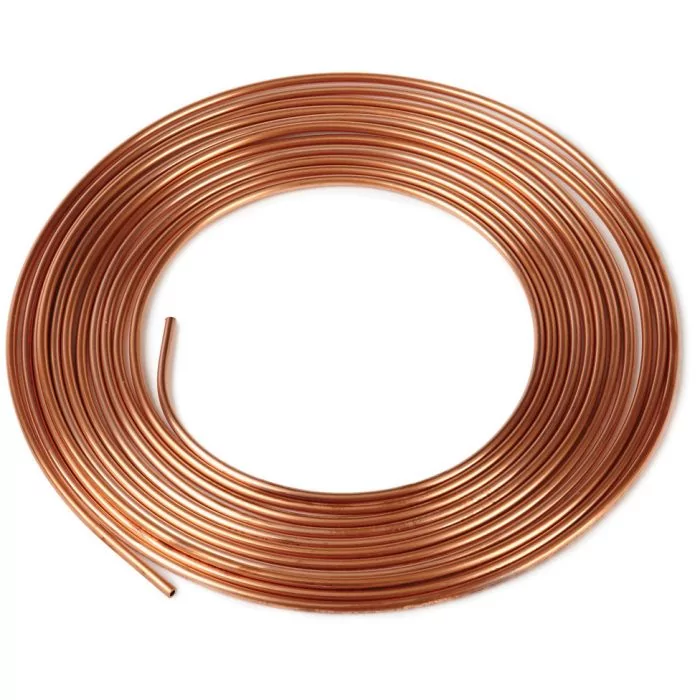

Copper Brake Pipe - 3/16inch 25ft roll

Name: Copper Brake Pipe - 3/16inch 25ft roll
SKU: AUTHCP316
Price: 39.072001 USD
Availability: InStock

Be the first to review this product

Special Price $39.07 $32.56 Regular Price $45.36

In stock

SKU

AUTHCP316

Copper brake pipe - 3/16inch 25ft roll

Details

We supply thick-walled copper which conforms to BS 2871 part 3, CN102 as well as BS EN 12451.1999. This material is 100% electricallyand pressure tested. Every batch is also destructively tested for tensile andburst pressure results. Residue testing to BLS.30.JC.101 is also carried out onevery batch to ensure cleanliness standards are met. Working pressures 20g= 0.036” = 0.91mm C106 soft copper This high quality thick walled copper tubing is manufactured in Great Britain.

Features

• Length 25ft (7.62M)
• Manufactured in Great Britain
• Outside diameter 3/16" (4.75mm)
• Recommended maximum working Lb/in 3100 (214 Bar)
• Theoretical burst pressure Lb/in 14000 (965 Bar)
• Wall thickness Thick walled = 20g = 0.036” = 0.91mm

Buy Copper Brake Pipe from Mini Sport, the worlds premier online Mini store.

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	254mm (10'') master cylinder to 3 way	- 2 x M	BP10
2	762mm (30") master cylinder to 3 way LHD	- 2 x M	BP30
	762mm (30") master cylinder to servo 1275GT	- 2 x M	BP30
3	432mm (17") 3 way to RH front brake hose	- 2 x M	BP17
4	432mm (17") 3 way to RH front hose AUTO	- 2 x M	BP17
7	152mm (6'') rear regulating valve to RH hose	- 1 x M, 1 x F	BP6
7	203mm (8'') inertia valve to RH rear hose	- 1 x M, 1 x F	BP8
7	229mm (9'') inertia valve to RH rear hose, hydro	- 1 x M, 1 x F	BP9
	rear hose to rear wheel cylinder, hydrolastic	- 1 x M, 1 x F	BP8
9	254mm (10'') rear hose to wheel cylinder VAN	- 1 x M, 1 x F	BP10A
10	305mm (12") brake pipe to master cylinder	- 2 x M	BP12
12	356mm (14") master cylinder to 3 way	- 2 x M	BP14
11	254mm (10'') bridge pipe front wheel cylinders	- 2 x M	BP10
	483mm (19") 3 way to front hose RH, saloon	- 2 x M	BP19
8	610mm (24") servo to 3 way connector (Mk3 S)	- 2 x M	BP24A
	610mm (24") rear regulating valve to LH hose	- 2 x M	BP24A
	660mm (26") rear reg. valve to LH hose, hydro	- 1 x M, 1 x F	BP26
	737mm (29") m/cylinder to warning switch LHD	- 2 x M	BP29
13	813mm (32") master cylinder to servo	- 2 x M	BP32
	839mm (33") master cylinder to 3 way LHD	- 2 x M	BP33
	889mm (35") inertia valve to LH rear hose	(1 x M, 1 x F) NLA	BP35
	940mm (37") inertia valve to LH rear hose hydro	(1 x M, 1 x F) NLA	BP37
	1067mm (42") servo to RH front hose LHD	(2 x M) NLA	BP42
6	1090mm (43") RH front hose to LH front hose	- 2 x M	BP43
6	1118mm (44") RH front hose to LH front hose	- 2 x M	BP44
5	2565mm (101") 3 way to rear regulating valve	- 2 x M	BP101
5	2642mm (104") 3 way to rear reg. VAN	- 2 x M	BP104
	2695mm (106") 3 way to rear reg. valve Van	- 2 x M	BP106
	2695mm (109") warning switch to inertia valve	(2 x M) NLA	BP109
	432mm (17") tube connector to LH front hose	- 2 x M	BP17
	737mm (29") warning switch to tube connector	- 2 x M	BP29
	762mm (30") master cylinder to warning switch	- 2 x M	BP30
	2440mm (96") warning switch to RH rear hose - saloon with split diagonal brake system	- 1 x M, 1 x F	BP96
	2695mm (116") warning switch to LH rear hose - saloon with split diagonal brake system	- 1 x M, 1 x F	BP116
	2565mm (101") warning switch to RH rear hose van, estate, pick-up with split diagonal brake system	(1 x M, 1 x F) NLA	BP101A
	3048mm (120") warning switch to LH rear hose van, estate, pick-up with split diagonal brake system	- 1 x M, 1 x F	BP120
	Draper 7 Piece Brake Pipe Flaring Tool Kit		TOL37870
	Hand held pipe bending tool - small radius bends - 3/16" (4.76mm) pipe.		AUT160
	Pipe bending tool - o.d. 3/16 - 3/8" (4.76-10mm) bends to radius of 3/4" - 1 1/4" (1.9 - 3.2cm).		AUT111
	Male Brass Fittings M10 x 1mm 3/16"	- x 10	AUTM-M10
	Male Brass Fittings 3/8 x 24 UNF 3/16Ó	- x 10	AUTM-3/8
	Female Brass Fittings 3/8 x 24 UNF 3/16Ó	- x 10	AUTF-3/8
	Female Brass Fittings M10 x 1mm 3/16"	- x 10	AUTF-M10
	Copper Brake Pipe - 3/16" 25m roll		AUTHCP316
	Eezibleed - one man bleed - brake/clutch		GUNG4062
	Vacuum pump for bleeding & vac testing		GUN77003
	Brake adjusting spanner		TOLSPAN07200
	Brake bleed spanner - 1/4'' & 7mm	NLA	TOL660145SP
	Brake caliper windback tool - 14 piece		GUN3476
