Short Mini Brake Drum Screw

Name: Short Mini Brake Drum Screw
SKU: CMZ407
Price: 0.924001 USD
Availability: InStock

Be the first to review this product

Special Price $0.92 $0.77 Regular Price $1.30

In stock

SKU

CMZ407

Mini brake drum short retaining screw 1959-1984 each

Frequently Bought Together

Short Mini Brake Drum Screw
Special Price $0.92 $0.77 Regular Price $1.30
Front Drum Brake Assemblies - PAIR - Mini 1959-84
Special Price $229.38 $191.15 Regular Price $282.07
Front Timing Cover Mounting Plate Gasket - A+
Special Price $3.65 $3.04 Regular Price $4.07
Blanking Plug - Rear Back Plate
Special Price $3.43 $2.86 Regular Price $3.84
Chrome Bumper, All models 1959-01
Special Price $57.13 $47.61 Regular Price $58.37

Details

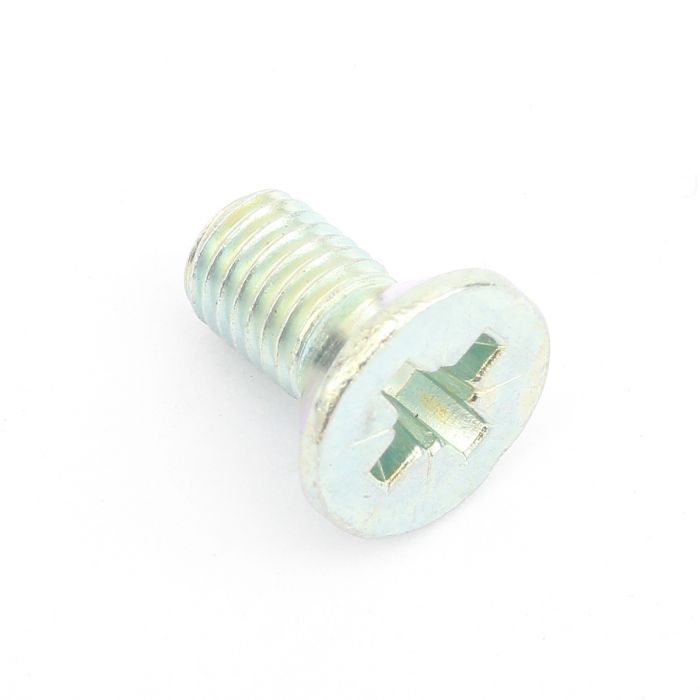

This is the small countersunk screw that fastens the Mini brake drum (GDB105) onto the front or rear hub (21A2023). Minis from 1984 onwards fitted with spaced rear drums (GDB106) use the longer screw CMZ422.

This screw is also used to replace the bottom two bolts on the bearer plate when converting a Mini engine to a duplex timing chain setup (C-AJJ3323T).

Buy top quality Classic Mini brake parts from Mini Sport, the worlds premier online Mini store.

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Engine front bearer plate	A +	12G2626
2	Gasket - front plate	A series	12G619B
2	Gasket - front plate	A +	GUG705554GM
3	Set Screw - front plate to bearing cap	Simplex gears	53K2016
3	Set Screw - front plate to bearing cap	Duplex gears	CMZ407
4	Washer		GHF321
5	Camshaft locating plate		TAM2014
6	Set Screw - front plate to crankcase		GHF117
7	Shakeproof Washer		GHF321
8	Simplex Camshaft Gear		12G4337
8	Duplex Camshaft Gear		12G1397
9	Woodruff Key - camshaft gear		WKN505
10	Lock Washer - camshaft		2A759
11	Nut - camshaft		6K629
12	Simplex Timing Chain		3H2127
	Duplex Timing Chain		2H4905
13	Chain Tensioner Pad		12G2621OE
14	Pivot Pin - chain tensioner		12G2629
15	Mounting Plate - chain tensioner		12G2628
16	Set Screw - tensioner bracket to crankcase		GHF120
17	Spring Washer		GFK1125
18	Washer		GFK1114
19	Timing cover 1275cc - (with oil separator)	'90 on	LJR10168
20	Oil Seal - timing cover		88G561
	Oil Seal - timing cover		88G561OE
21	Timing cover gasket - 10 bolt	A Series	12A956B
21	Timing cover gasket - 11 bolt	A+	12G2625
22	Set Screw - timing cover to plate		SH604031
23	Washer		WC106041
24	Spring Washer		GFK1124
25	Set Screw - timing cover, plate, crankcase		GHF120
26	Spring Washer		GFK1125
27	Washer		GFK1114
28	Set Screw - timing cover to plate		GHF120
30	Spring Washer		GFK1125
31	Washer		GFK1114
29	Nut - cover to front plate		GHF201

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

0	Rear - Built and ready to fit,	pair	MS2690
	Rear - as above with Mintex shoes,	pair	MS2690MIN
	Front - Built and ready to fit,	pair	MS2693
1	Back Plate Rear	right side	21A1058
	Back Plate Rear	left side	21A1060
2	Handbrake cable bracket	right side	21A1669
2	ST Handbrake cable protection bracket	left side	C-AHT213
2	ST Handbrake cable protection bracket	right side	C-AHT212
	Handbrake cable bracket	left side	21A1670
3	Spacer Washer - packing		GFK1114
4	Bolt 5/16" UNF - for back plate		GFK5185
5	Spring Washer - for back plate bolt		GFK1125
6	Nut 5/16" UNF - for back plate bolt		GHF201
7	Standard Rear Brake Shoes		GBS834AF
7	Mintex Standard Rear Brake Shoes		GBS834MIN
7	Mintex Rally / Race Rear Brake Shoes		MLR5M20
8	Rear adjuster screw & wedge kit		17H7620
9	Rear - Lower spring (spring each end),each		17H8092
9	Rear Brake Shoe Return Spring Kit - set 4		GBK1834
10	Rear - Upper spring (mid spring), each		17H7621
11	Handbrake lever set, pair		SMN10005
12	Rubber boot for handbrake lever, each		17H7612
13	Rear wheel cylinder locating gasket, each		37H4642
0	(19.0mm) - Cooper S/GT - Mk2 '67 on		GWC1102
	(15.9mm) - 850cc '59-'66 / 1275cc '69-'74		GWC1101
14	(17.5mm) - 1275GT '69 to '71 with 7.5'' discs		GWC1129
14	(14.3mm) - 850/998cc - '74 to '78		GWC1131
14	(12.7mm) - 1275GT - '74 to '78		GWC1126
	(19.0mm) - Genuine Rover Mini 1990 on	NLA	17H8152EVA
0	suit GWC101, each		GRK2013
15	suit GWC1102, each		GRK2014
	suit GWC1131/GWC1134, each		GRK2003
15	suit GWC1129, each		GRK2004
	suit GWC1126, each		BHM7015
16	Rear Wheel Cylinder Bleed Screw		513118A
	Blanking Plug - rear back plate		AEU1541A
17	Brake Drum, Standard type	front or rear, each	GDB105
17	EBC Brake Drum, Standard type	front or rear, each	EBCDM019
17	Brake Drum, Spacer type	'84 on rear, each	GDB106
17	Superfin Drum, Spacer type	'84 on rear, each	MSLMS0507
	Superfins with Backplate Kit	'84 on rear, set	MSLMS0507KIT2
18	Brake drum screw - standard drum type, each		CMZ407
18	Brake drum screw - spacer type drum, each		CMZ422
19	Rear wheel cylinder locating clip, each		17H7949

More Information

More Information
SKU	CMZ407
Manufacturer	OE Spec
Cross Reference Product Codes	CMZ407
