Primary Gear Thrust Washer 1275cc - .112"-.114"

Name: Primary Gear Thrust Washer 1275cc - .112"-.114"
SKU: DAM6490
Price: 44.124001 USD
Availability: InStock

Be the first to review this product

Special Price $44.12 $36.77 Regular Price $47.45

Sorry, out of stock Please Order Back in stock soon!

SKU

DAM6490

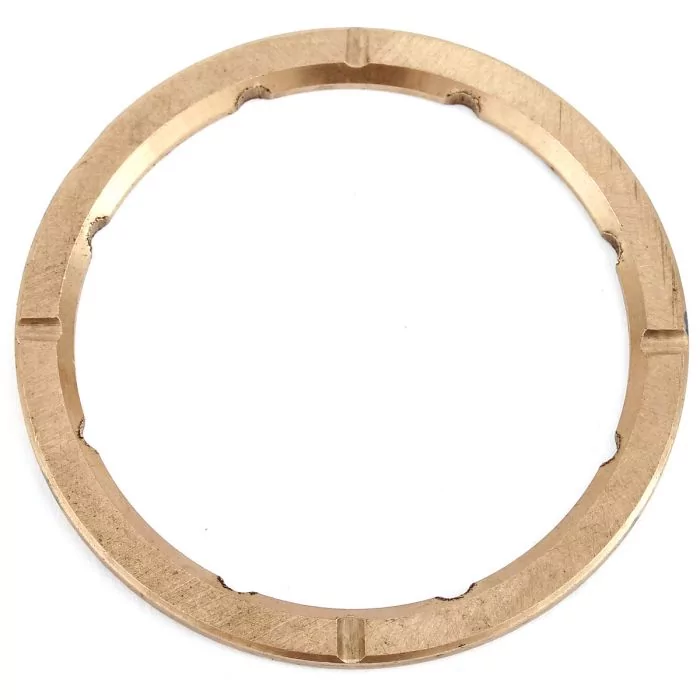

Primary gear thrust washer shim - size 2.84-2.89mm (0.112-0.114") for Mini 1275cc A series engines.

Details

2.84-2.89mm (0.112-0.114") Primary gear thrust washer shim to suit Mini 1275cc A series engines.

Varying sizes are available - this allows the end float tolerance to be set between (.003" - .006") for perfect fitment

Sizes available

2.84-2.89mm (0.112-0.114") - DAM6490
2.89-2.94mm (0.114-0.116") - DAM6486
2.94-2.99mm (0.116-0.118") - DAM6487
2.99-3.04mm (0.118-0.120") - DAM6488
3.04-3.09mm (0.120-0.122") - DAM6489
3.09-3.14mm (0.122-0.124") - DAM6492

Buy top quality Classic Mini gearbox spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Primary gear	- 850cc/ 1000cc/ 1100cc A series	22A1493
1	Primary gear	- 1275cc A series	22G1053
1	Primary gear	- 1000cc/ 1100cc A+	DAM8888
1	Primary gear	- 1275 A+ including injection models	DAM8890
3	Rear bush with lip - Primary Gear	all models	22G109
2	Front bush	- Primary Gear - 1275cc	DAM8889
4	Thrust washer	- 2.84-2.89mm(0.112-0.114") - 998cc	22A322
4	Thrust washer	- 2.89-2.94mm(0.114-0.116") - 998cc	22A323
4	Thrust washer	- 2.94-2.99mm(0.116-0.118") - 998cc	22A324
4	Thrust washer	- 2.99-3.04mm(0.118-0.120") - 998cc	22A450
4	Thrust washer	- 3.04-3.09mm(0.120-0.122") - 998cc	DAM4599
4	Thrust washer	- 2.84-2.89mm(0.112-0.114") - 1275cc	DAM6490
4	Thrust washer	- 2.89-2.94mm(0.114-0.116") - 1275cc	DAM6486
4	Thrust washer	- 2.94-2.99mm(0.116-0.118") - 1275cc	DAM6487
4	Thrust washer	- 2.99-3.04mm(0.118-0.120") - 1275cc	DAM6488
4	Thrust washer	- 3.04-3.09mm(0.120-0.122") - 1275cc	DAM6489
6	'C' Washer backing plate	Primary Gear	88G549
5	'C' Washer	Primary Gear	22A319
8	Idler gear	- 998cc/ 1100cc/ 1300cc A+ (37)	DAM2924
9	Thrust washer	- A+ idler gear (.130" - .131")	DAM5914
9	Thrust washer	- A+ idler gear (.132" - .133")	DAM4822
9	Thrust washer	- A+ idler gear (.134" - .135")	DAM4823
9	Thrust washer	- A+ idler gear (.136" - .137")	DAM4824
9	Thrust washer	- A+ idler gear (.138" - .139")	DAM4825
10	Nut	1st Motion Drive Gear	2A3548
11	Locktab	Holds Input Gear to 1st Motion Shaft	DAM4000
12	1st Motion Drive Gear	4 syncro A Series	22G849
12	1st Motion Drive Gear	4 syncro A+	DAM2925
13	Roller Bearing	1st Motion Shaft Support	AAU8424
14	Large Circlip	1st Motion Support Bearing	2A3643
15	Small Circlip	1st Motion Support Bearing	CCN110
