SKU

GAE191A

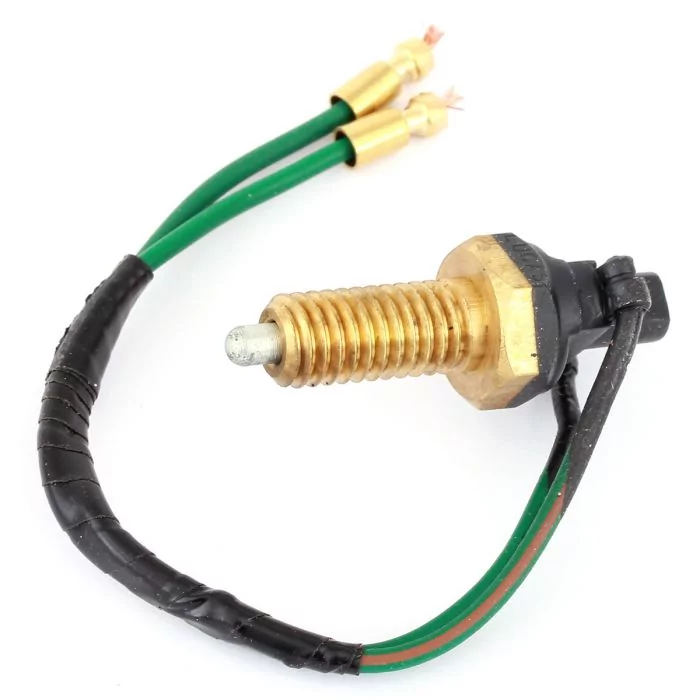

Reverse lamp switch rod type gearbox

Name: Reverse lamp switch rod type gearbox
SKU: GAE191A
Price: 18.840001 USD
Availability: InStock

Special Price $18.84 $15.70 Regular Price $20.83

In stock

SKU

GAE191A

Reverse lamp switch rod type gearbox

Frequently Bought Together

Reverse lamp switch rod type gearbox
Special Price $18.84 $15.70 Regular Price $20.83
Front Bumpstop - single bolt - late type each
Special Price $11.46 $9.55 Regular Price $12.67
Steering Rack - Sportspack - RHD
Special Price $135.96 $113.30 Regular Price $144.22
Cylinder Head Gasket - Turbo BK450 - 1275cc
Special Price $19.56 $16.30 Regular Price $20.40
Sportex Y Piece Manifold Clamp - 1 1/2'' clamp inc bracket
Special Price $5.46 $4.55 Regular Price $6.26

Details

Reverse lamp switch rod type gearbox)

No.

Description

Notes

Part No.

1	Housing - remote	DAM3670
2	Bush - lower - housing	42H1214
3	Pin-long - change speed control	DAM2670
4	Pin - short - change speed control	22G2277
5	Cover - bottom	DAM8621
6	Bracket - mounting	22G2026
7	Bolt-bracket to housing	BT606281
8	Nut - bracket to housing	LNZ106
9	Mounting (rubber) gearbox extension	22G2205
10	Washer - spring	GHF332
11	Nut - mounting	GHF201
12	Lever - gear change	UKE100790
15	Retainer - spring	22G1434
16	Eye - extension rod	22G2792
17	Rod - extension - 1275cc '92on	UKN10023
18	Pin - spring-slotted	RPS1416
19	Coupling-extension rod	42H1116
20	Rod - support - eye	42H1199
21	Rod - steady - 1275cc	UKN10032
22	Bolt - rod to differential cover	BT605161
23	Nut - bolt	NV605041
24	Washer	GHF304
25	Nut - steady rod	GHF275
26	Washer - steady rod	WA112081
27	Bush - Steady Shaft	13H7286
28	Retainer - gaiter	FJN10003
29	Bracket - exhaust system	GEX7088
29	Bracket - exhaust system - late type	GEX7526
30	Gaiter - change speed lever inner	CZH4278
31	Insulation - lever aperture
32	Screw - retainer-gaiter	GHF426
33	Reverse Light Switch	GAE191A
34	Locknut - Reverse Light Switch	22A1613

More Information
SKU	GAE191A
Manufacturer	OE Spec
Cross Reference Product Codes	GAE191
