Rear Subframe Fully Assembled - Genuine - Mini Mk4

Name: Rear Subframe Fully Assembled - Genuine - Mini Mk4
SKU: HMP241002
Price: 2613.036001 USD
Availability: InStock

Be the first to review this product

Special Price $2,613.04 $2,177.53 Regular Price $2,984.63

Sorry, out of stock Please Order Back in stock soon!

SKU

HMP241002

Genuine Mini rear subframe fully assembled and ready to fit

Frequently Bought Together

Rear Subframe Fully Assembled - Genuine - Mini Mk4
Special Price $2,613.04 $2,177.53 Regular Price $2,984.63
Rear Subframe Mounting Bush kit - Mini 1976 on
Special Price $57.70 $48.08 Regular Price $70.52

Details

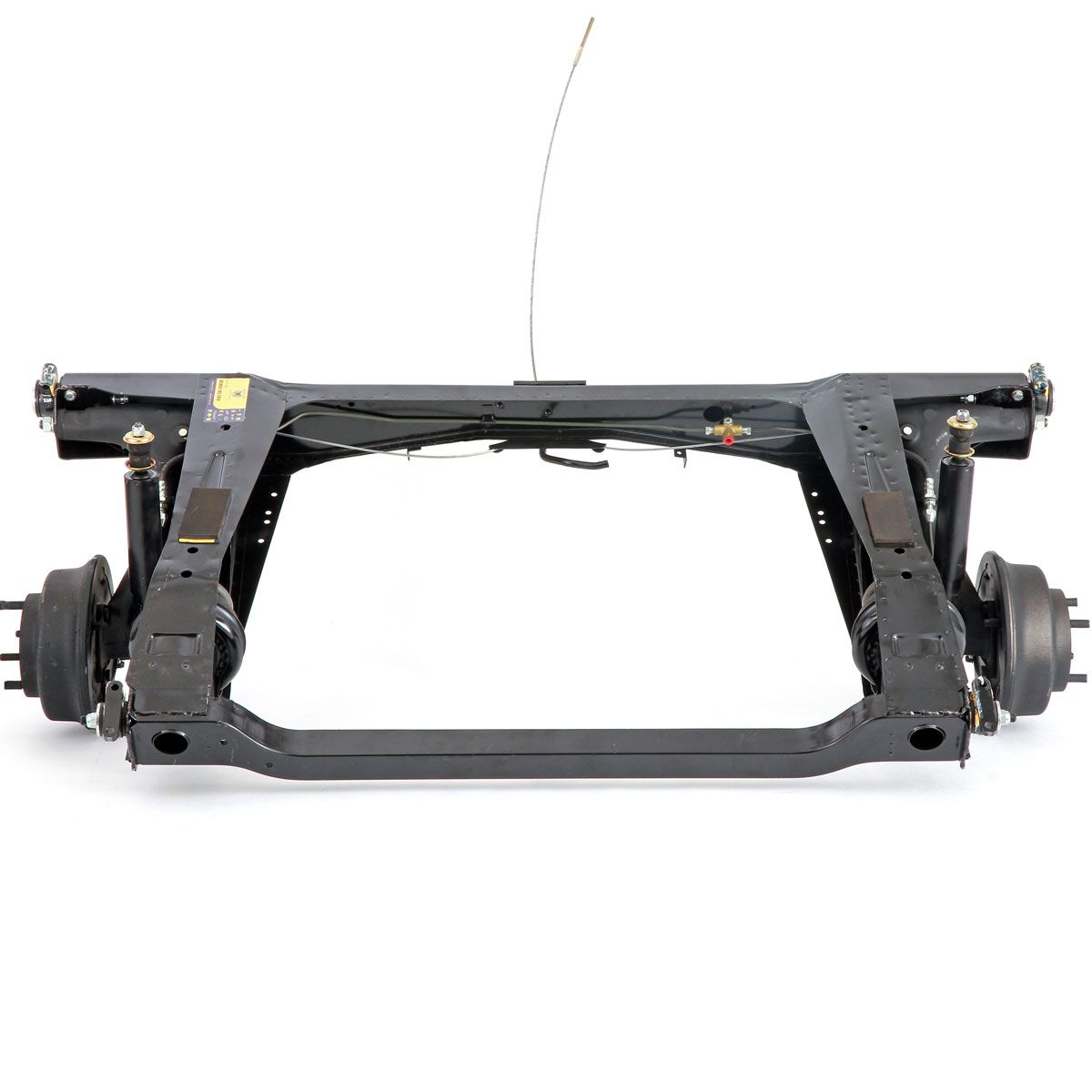

HMP241002 Mini rear subframe fully assembled and ready to fit.

Includes:

Rear Subframe

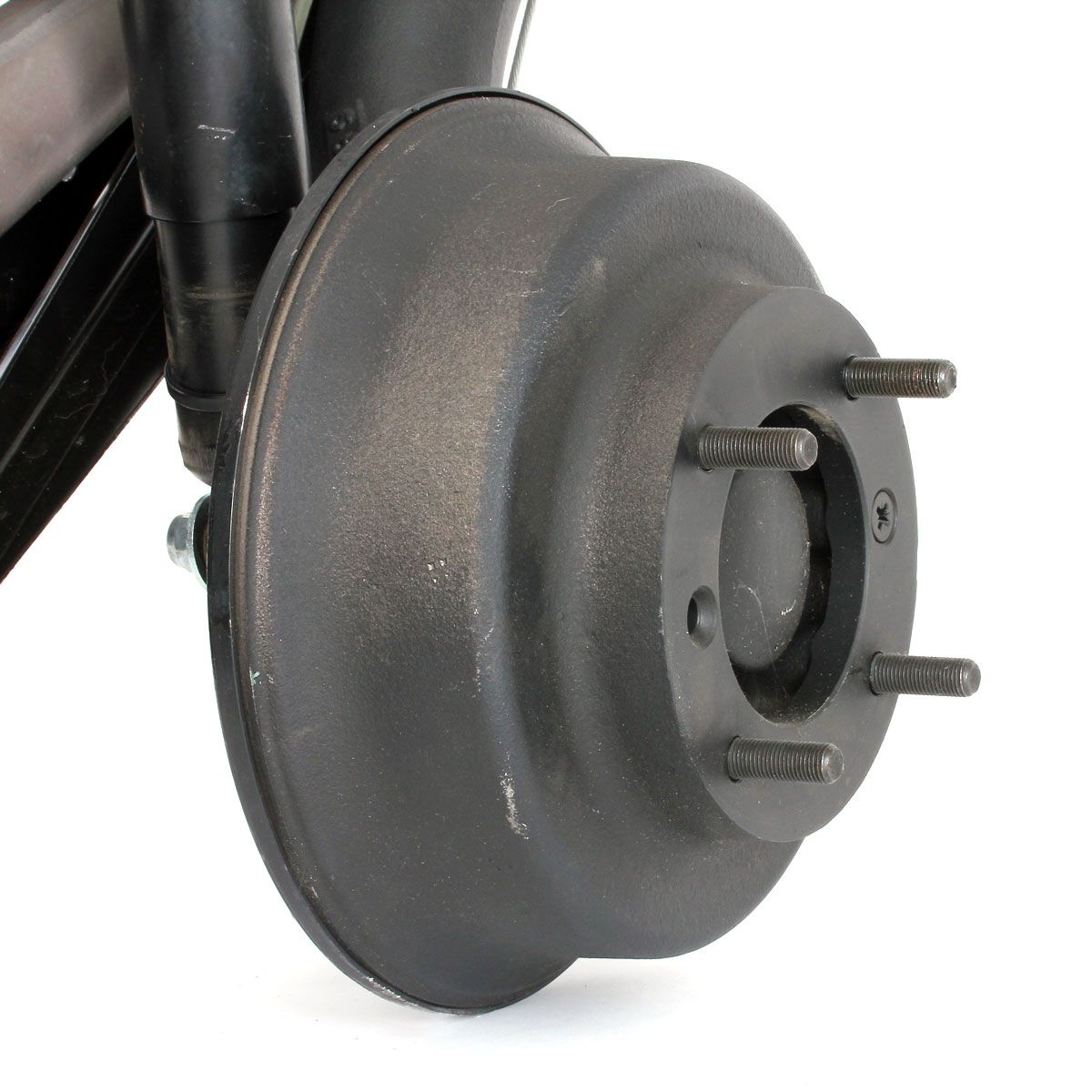

Radius arms and drum brake assemblies

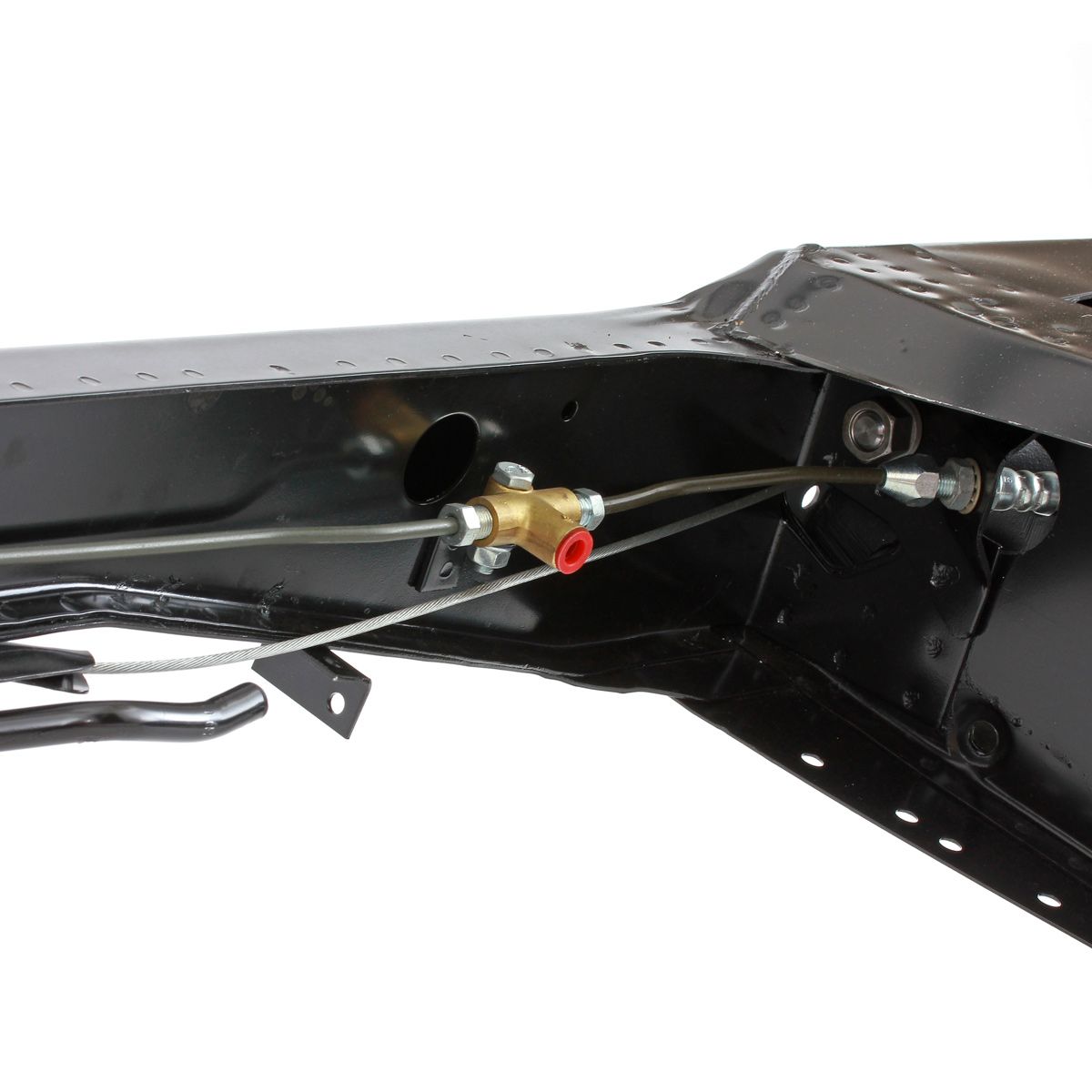

Handbrake cables
Brake Hoses and Pipes

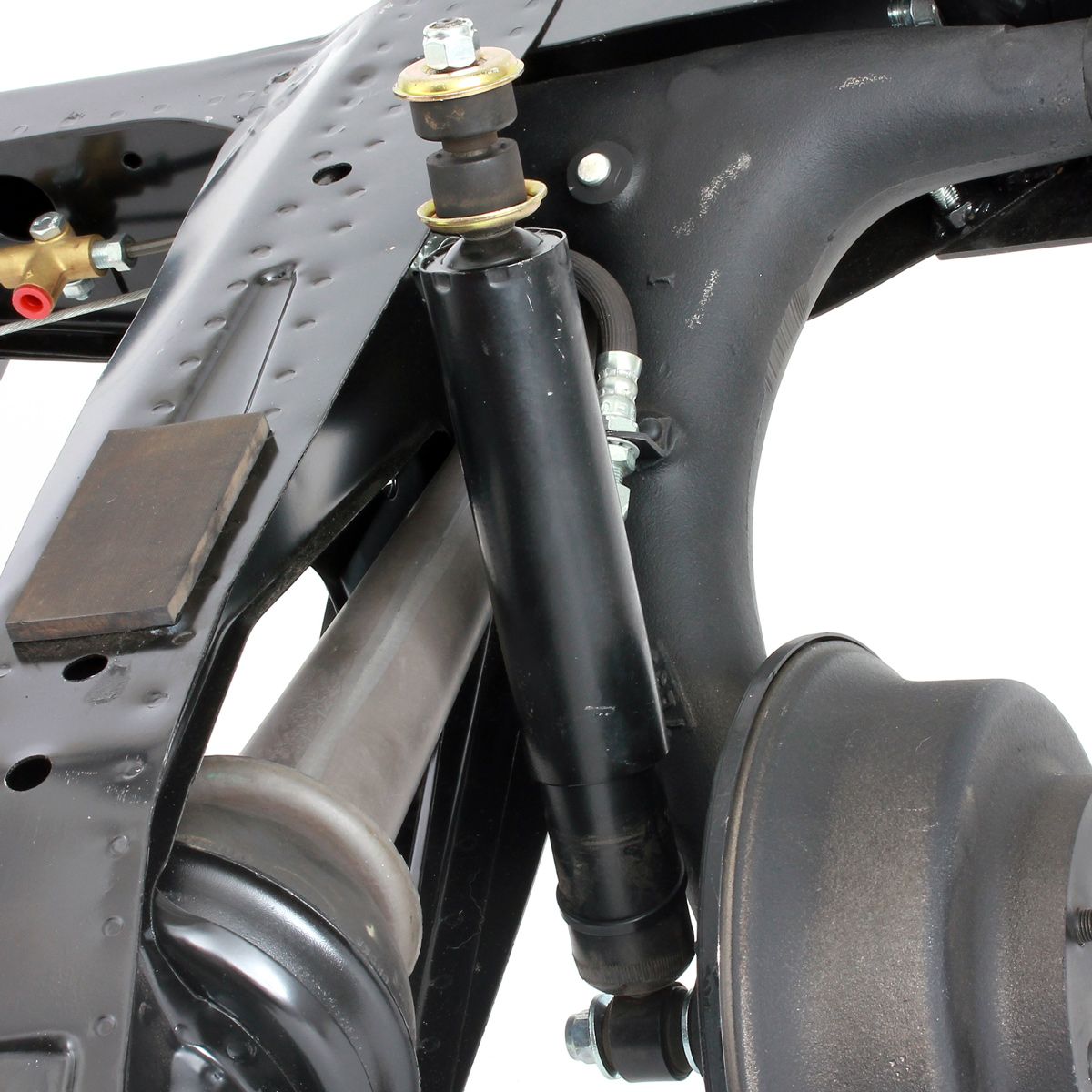

Rear Shock Absorbers

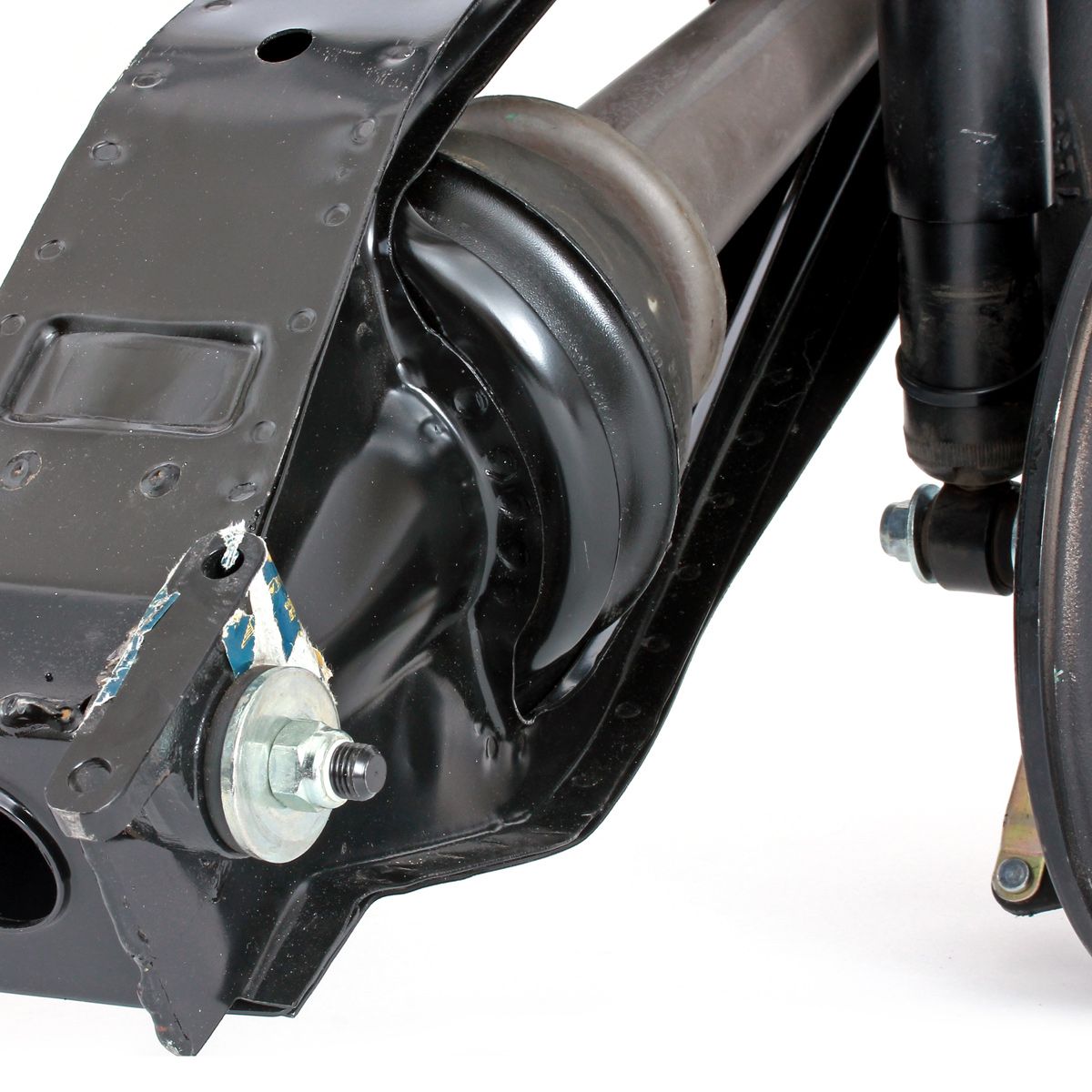

Rubber Suspension Cones
Suspension struts
Mounting brackets

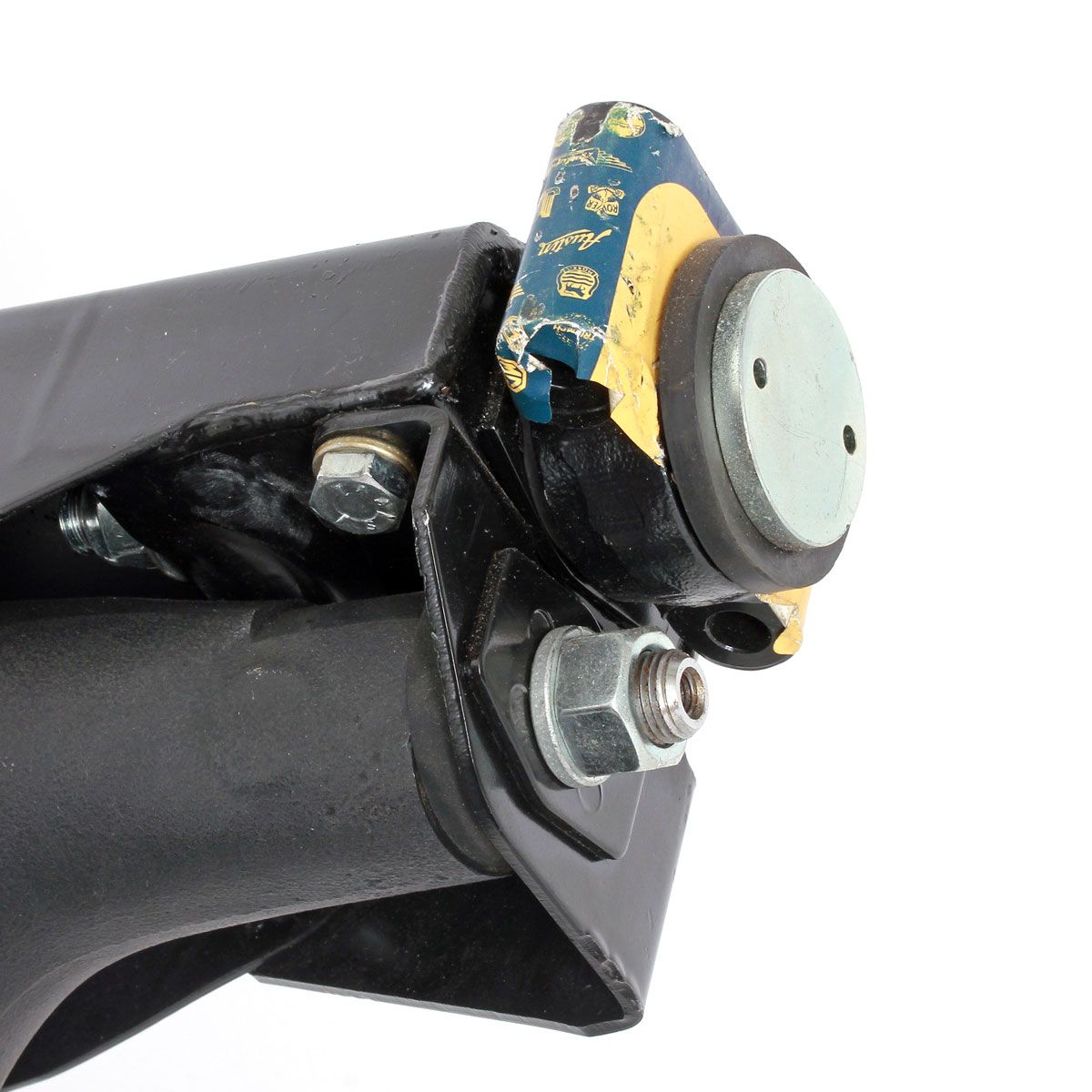

Trunnions and bushes

This Mini rear subframe is manufactured by British Motor Heritage using the original tooling and jigs and assembled in our workshops into a complete, ready to fit unit. the ultimate in rear end rebuilds!

Fits all dry suspension Minis although this does have the welded on exhaust hangers as used on the Mini from 1991 onwards.

Buy genuine Mini subframes and Mini suspension parts from Mini Sport, the world's premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	All (Hydrolastic) wet suspension models		21A2160
1	'59-'91 dry suspension models - no exhaust hangers		FAM6292
1	'92-'97 models with exhaust hangers		KHB10023
1	Sportspack '97-'01		KHB100590
1	Automatic Subframe assembly - '92-'97		KHB10024
1	KHB10024 including trunnions & bushes (as pic)		KHB10026
	Genuine - Mk4 built up and ready to fit		HMP241002
1	'59-'91 dry suspension models - no exhaust hangers		40-10-007
1	'59-'91 models - no exhaust hangers powder coated		40-10-007PC
1	'91-'97 dry suspension models - with exhaust hangers		40-10-008
1	'91-'97 models - exhaust hangers powder coated		40-10-008PC
1	All (Hydrolastic) wet suspension models)		40-10-006
2	RH radius arm/subframe bracket, each		21A195
3	LH radius arm/subframe bracket, each		21A197
7	Rear subframe fitting kit (as pic)		HMP841014
8	Rear trunnion pin, each		21A1440
9	Rear mounting bush, late, each		21A2560
9	Poly bush kit - late (red or black)		SPDSP664A
9	Nylon bush kit - late		MSLMS0531
10	Rear mounting bush - early, each		2A5818
10	Poly bush kit - early (red or black)		SPDSP662A
10	Nylon bush kit - early		MSLMS0532
11	Spring washer	each	GFK1125
12	Long trunnion bolt	each	SH605181
12	Short trunnion bolt	each	GFK5185
13	Nyloc nut	each	GFK3323
14	Washer	each	PWZ207
15	Washer - 5/16"	each	GFK1114
16	Nut - 5/16" UNF	each	GFK3322
17	Set Screw - trunnion 5/16" UNF	each	BH605201
18	Trunnion (rectangle), each		21A2558
19	Trunnion (step), each		2A5819

More Information

More Information
SKU	HMP241002
Manufacturer	Genuine
Body Panels	Rear, Subframes
