SKU

LKK10025

Exhaust Manifold Hot Box - Rover Injection 1992-2001

Name: Exhaust Manifold Hot Box - Rover Injection 1992-2001
SKU: LKK10025
Price: 27.204001 USD
Availability: InStock

$27.20 $22.67

In stock

SKU

LKK10025

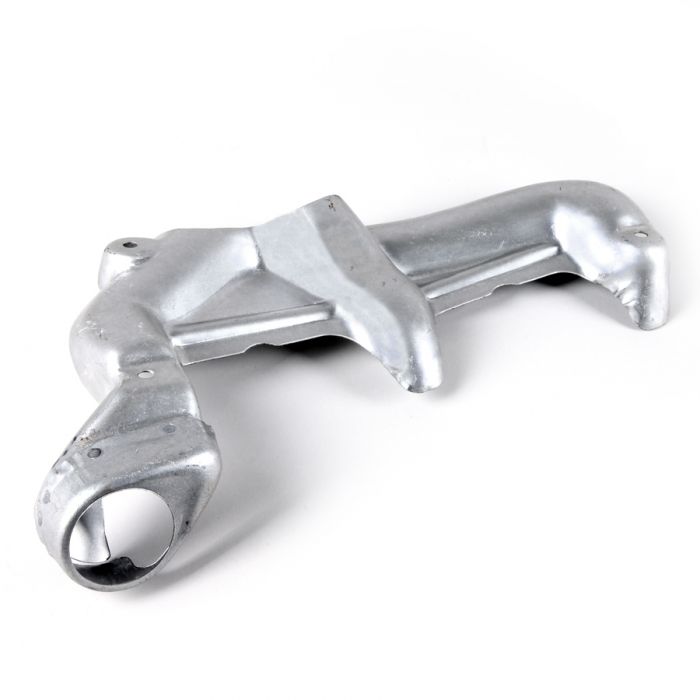

Hot box for the standard cast exhaust manifold - Rover Mini injection models 1992-2001

Frequently Bought Together

Exhaust Manifold Hot Box - Rover Injection 1992-2001
$27.20 $22.67
Breather Rail - SPI only
$20.40 $17.00
Screw - abutment bracket to manifold - Mini Spi
Special Price $0.85 $0.71 Regular Price $1.03

Details

Genuine exhaust manifold hot box for fuel injection model Mini's from 1992-2001.

We also have available limited quantities of the standard cast exhaust manifold. See LKC10090

No.

Description

Notes

Part No.

1	Throttle body - manual/ automatic		MLB10028
2	Injector assembly		MMJ10004
	Gasket - hydraulic body to body - throttle body		JZX3064
3	Kit - potentiometer		MMJ10003
4	Packer injector to	manifold	LZV1101
5	Fuel feed and return pipes		WJW10030
6	Clamp - fuel pipes		WJU10137
7	Screw - clamp		FS106165
8	Bracket - abutment		MHU10059
9	Bracket - rail		WJU10136
10	Nut - flanged-throttle body to manifold		FN108041
11	Screw - abutment bracket to manifold		FS106101
12	Seal - air box to throttle body		PHN10011
13	Heater PTC - inlet manifold		MED10003
14	Clip-retaining - P.T.C Heater		CR110551
15	Tie-cable - stepper motor loom		AAU6365
	Adaptor - potentiometer		JZX2454
16	Manifold-inlet	NLA	LKB10477
17	Manifold-exhaust		LKC10090
18	Stud - exhaust manifold		TD108051
	Gasket - Manifold - injection		LKJ100580EVA
19	Stud - manifold to packer		TE108071
20	Nut - stud		GFK3436
21	Washer - plain		GFK1114
22	Nut and washer - manifold stud		LYH10008
23	Ferrule - inlet manifol to head		12G297
24	Hot box-manifold		LKK10025
25	Screw-hot box to manifold		FS106101
26	Air Cleaner Assembly		PHB10081
27	Element		GFE1143
28	Duct-elbow		PHD10129
29	Hose-sensor to A.T.C.		PHP10027
30	Sensor - thermal	NLA	ADU6109
31	Seal - sensor		UAM1828
32	Sensor-air temperature		NNK10001
33	Duct - hot air	NLA	PHD10210
	Screw - heatshield to duct		PKE10002
34	Pipe - vacuum - inlet manifold		PHP10043
35	Screw - air cleaner to throttle body		PYP10018
36	Valve - assembly depression control		LLN10009
37	Seal - air cleaner to throttle		PHN10011
	Tie - vacuum pipe to harness		AAU6365

More Information
SKU	LKK10025
Manufacturer	Genuine
