Motorsport Rear Subframe Kit

Name: Motorsport Rear Subframe Kit
SKU: 40-10-007MS-KIT
Price: 486.816001 USD
Availability: InStock

Be the first to review this product

Special Price $486.82 $405.68 Regular Price $555.72

In stock

SKU

40-10-007MS-KIT

Mini motorsport rear subframe for all dry suspension models up to 1991.

This ultra lightweight and strengthened subframe comes ready to fit with no modifications required, plus finished in black powder coating for extra protection from rust and corrosion.

Comes complete with adjustable camber and tracking brackets.

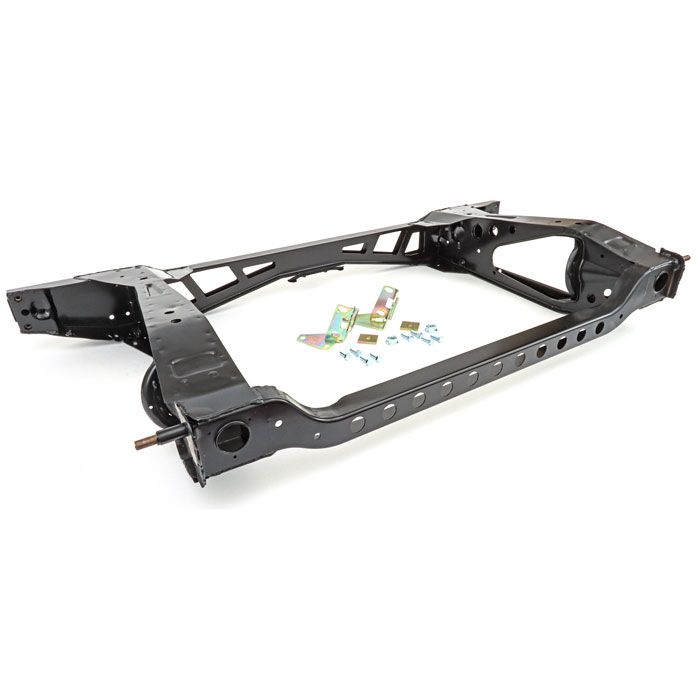

Mini adjustable rear brackets and motorsport subframe

Details

A motorsport rear subframe for all dry suspension Minis up to 1991, super strong and lightweight, perfect for competition use, race, rally and sprint.

The full kits comes complete with a motorsport rear subframe and negative camber and tracking brackets to fit directly to the rear of your Mini with no modifications required

For the genuine alternative please see part number FAM6292.

Buy top quality Classic Mini subframes and suspension parts from Mini Sport, the premier online mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	All (Hydrolastic) wet suspension models		21A2160
1	'59-'91 dry suspension models - no exhaust hangers		FAM6292
1	'92-'97 models with exhaust hangers		KHB10023
1	Sportspack '97-'01		KHB100590
1	Automatic Subframe assembly - '92-'97		KHB10024
1	KHB10024 including trunnions & bushes (as pic)		KHB10026
	Genuine - Mk4 built up and ready to fit		HMP241002
1	'59-'91 dry suspension models - no exhaust hangers		40-10-007
1	'59-'91 models - no exhaust hangers powder coated		40-10-007PC
1	'91-'97 dry suspension models - with exhaust hangers		40-10-008
1	'91-'97 models - exhaust hangers powder coated		40-10-008PC
1	All (Hydrolastic) wet suspension models)		40-10-006
2	RH radius arm/subframe bracket, each		21A195
3	LH radius arm/subframe bracket, each		21A197
7	Rear subframe fitting kit (as pic)		HMP841014
8	Rear trunnion pin, each		21A1440
9	Rear mounting bush, late, each		21A2560
9	Poly bush kit - late (red or black)		SPDSP664A
9	Nylon bush kit - late		MSLMS0531
10	Rear mounting bush - early, each		2A5818
10	Poly bush kit - early (red or black)		SPDSP662A
10	Nylon bush kit - early		MSLMS0532
11	Spring washer	each	GFK1125
12	Long trunnion bolt	each	SH605181
12	Short trunnion bolt	each	GFK5185
13	Nyloc nut	each	GFK3323
14	Washer	each	PWZ207
15	Washer - 5/16"	each	GFK1114
16	Nut - 5/16" UNF	each	GFK3322
17	Set Screw - trunnion 5/16" UNF	each	BH605201
18	Trunnion (rectangle), each		21A2558
19	Trunnion (step), each		2A5819

More Information

More Information
SKU	40-10-007MS-KIT
Manufacturer	Magnum
Body Panels	Rear, Subframes
